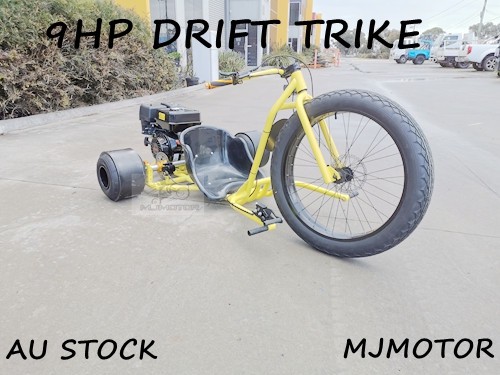

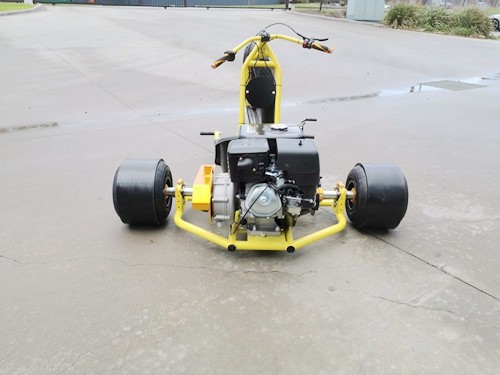

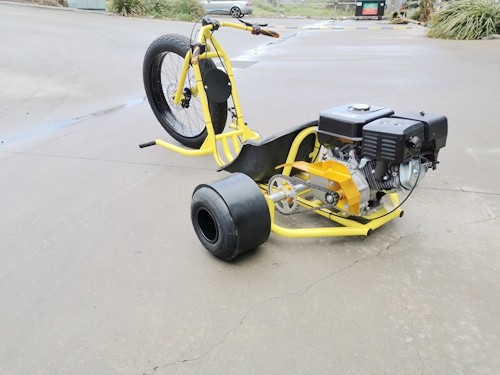

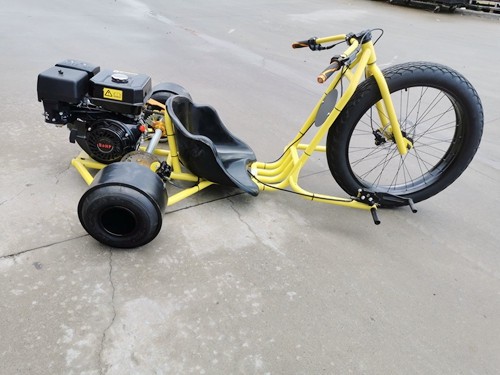

9HP 270CC MOTORISED DRIFT TRIKE HUFFY SLIDER FAT BOY GOKART FATBOY DT4 FULL SIZE E-STARTER

9HP 270CC MOTORISED DRIFT TRIKE HUFFY SLIDER FAT BOY GOKART FATBOY DT4 FULL SIZE for adults/teenagers Features

E-STARTER

Big 26"x 4" Front Wheel

4 Stroke 9hp/270cc Engine

Reduction gearbox/wet clutch

40mm rear axle(much stronger than 25mm axle)

Heavy duty steel chassis

Go kart style bucket seat

5" go kart bigger rear Wheels (11x7.10-5)

A pair PE Drift Sleeves For Rear Wheel(12mm thickness)

Hydraulic Rear Disc Brakes By Foot

CNC upgraded parts(golden color, hubs, collars,chain guard,foot pegs,etc)

Handle Front Disc Brake

Twist Throttle Control

Extended Body Frame

Max Loading 120kgs

Distance Between Seat back to foot Peg: Around 95cm

Fit Adults/Teens

Specifications

Engine: 270cc (9hp) 4 stroke Air Cooled with reduction gearbox

Compression Rate:  9.5:1

Start: E-STARTER and Recoil pull start

Fuel Tank Capacity: 3.6L

Fuel: Unleaded Petrol

Engine Oil Capacity  0.6L

Gearbox Oil Capacity 0.3L

Transmission: Auto

Max Power 9HP

Drive System: Chain

Throttle Control: Handle Twist Throttle

Front Brakes: Handle hydraulic  Lever Brake

Rear Brakes: Hydraulic Ventilated Disc Brake

Final drive: Chain #428

Maximum Speed: >80km/hr (depending terrain surface & rider Weight)

Wheel Size: 26"x4 (Front), 11x7.10-5(Rear)

Ground Clearance Approx 125mm

Rider Capacity 1 person

Maximum Load: 120kg

Dimensions (L x W x H) BOX : 1160 x 900 x 600 (mm)

Drift Trike(L x W x H): 2100 x1200 x 900 (mm)

N. W: 80kgs

G. W: 85kgs

Assembly

This trike is 90% assembled. Please assemble frame jointing/handle bar/front wheel/rear wheel/seat. It will take you $30-60 mins to finish assembly.

Please make sure that you add engine oil and gearbox oil before you start the engine. Engine without oil will be seized and warranty will not covered for this damage.
Shipping cost

For all areas, please email us with the name of the suburb and postcode, we will quote a rate and get back to you asap.

Most items will be sent to your nearest depot. Please email us if you need it delivered to your home address there may be an extra cost caused.
Local pickup is available and free. Please book a time in then we will get item ready for you.
