9HP Engine 2:1 Reduction Gear Box Stationary Motor 4 Go Kart E-start LIFAN brand

NOTES:  All 4-stroke engines do not come with engine oil. The reason is that shipping companies do not allow oil inside. Before starting the engine, please ensure sufficient engine oil has been added. You can use motorbike oil SAE 10W-30,10W-40, 15W-30, 15W-40.Please check the oil level in the reduction gearbox.

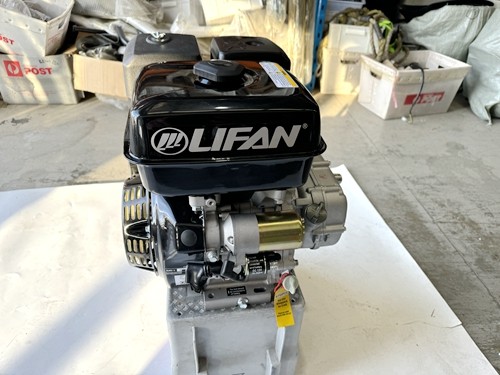

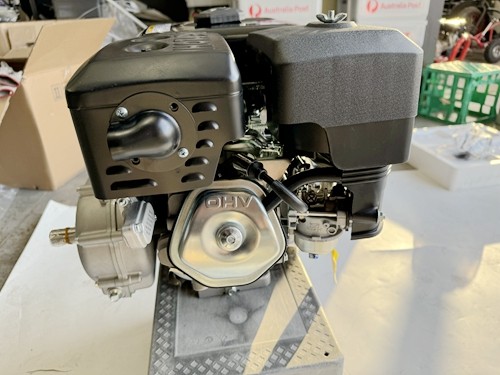

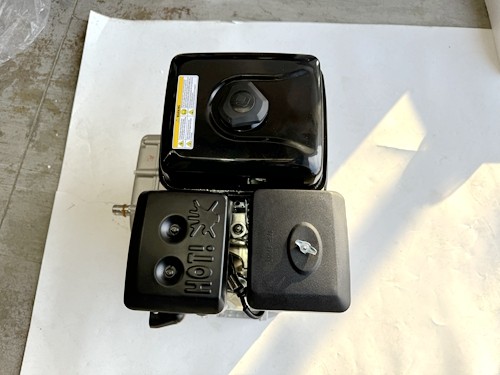

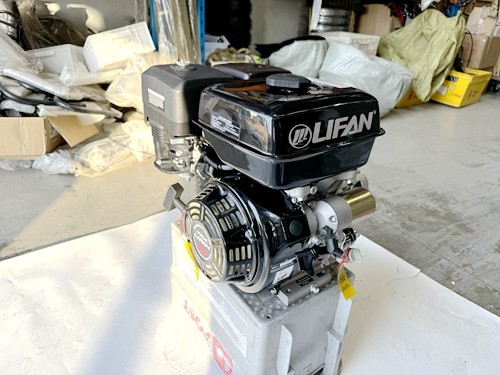

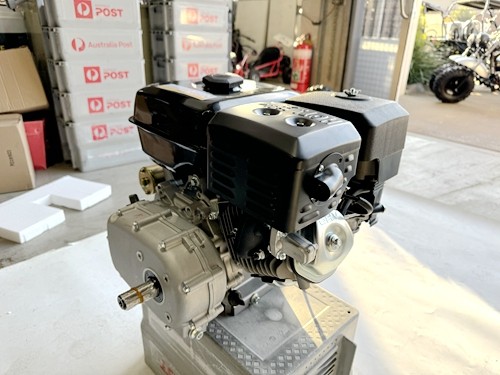

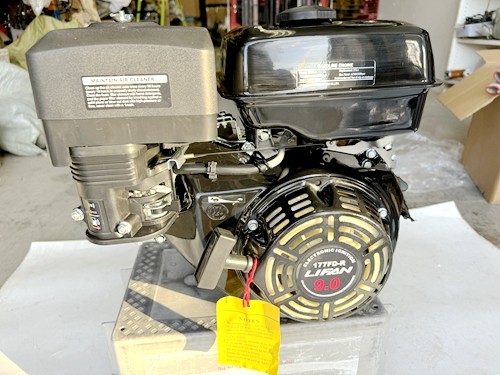

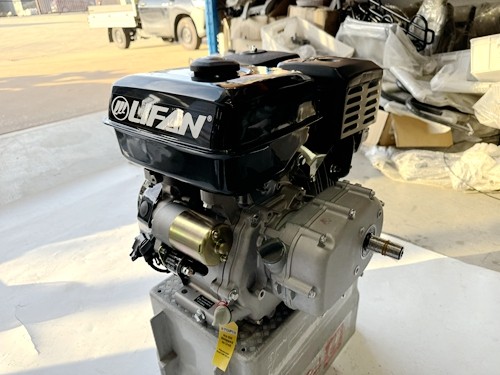

This is a brand new complete LIFAN 270cc, 4 stroke, restrictable, automatic, air-cooled, pull start and e-start engine with a reduction gearbox.

Standard equipment on 270cc 9hp Drift trike/kart.

These engines are ultra-reliable and can be used on power washers, go-karts, log splitters, chippers, spreaders, mowers, and a whole range of projects and bespoke fitment.

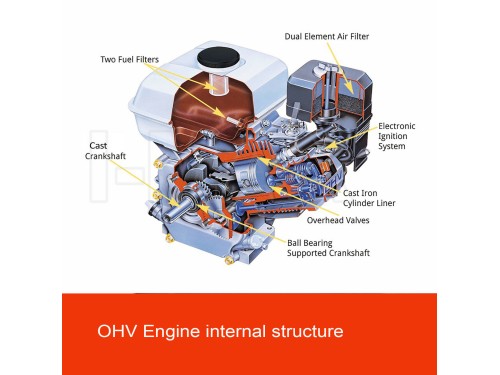

ENGINE TYPE - Single cylinder 4 Stroke Unleaded Air Cooled Engine

ENGINE DISPLACEMENT - 270ml

MAXIMUM POWER OUTPUT - 9hp @ 3600rpm

MAXIMUM TORQUE OUTPUT - 19.0 N.m @ 2500rpm

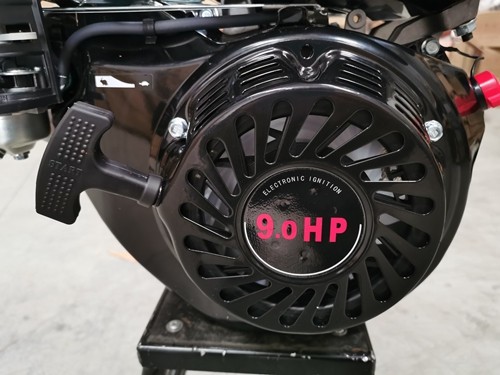

STARTING SYSTEM - PULL RECOIL START and Electrical START

BORE x STROKE SIZE - 77mm x 58mm

FUEL TANK CAPACITY - 6 litres

FUEL CONSUMPTION - 290g / HP - hour

ENGINE OIL CAPACITY - 1.1 Litres

ENGINE OIL GRADE - SAE-30 Grade

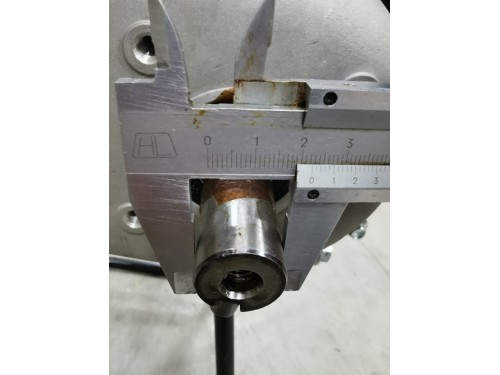

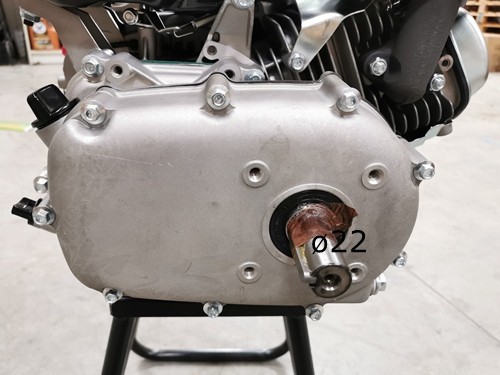

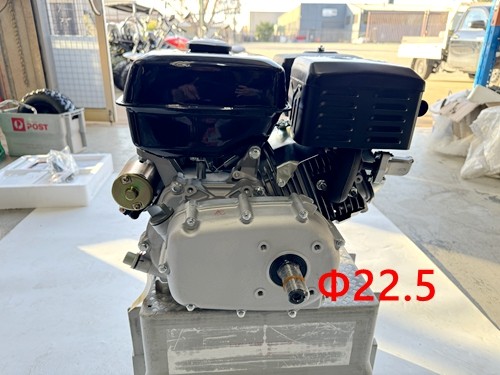

OUTPUT SHAFT OUTSIDE DIAMETER -  22mm

SHAFT ROTATION: ANTI-CLOCKWISE (VIEW FROM SHAFT SIDE)

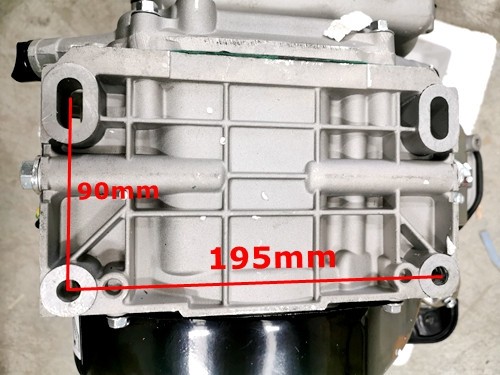

DIMENSION (LxWxH) 380x420X410mm

NET WEIGHT 30KGS
