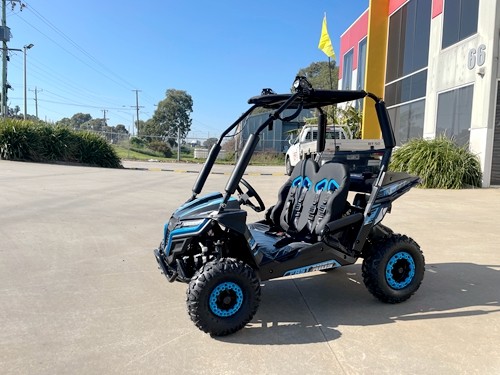

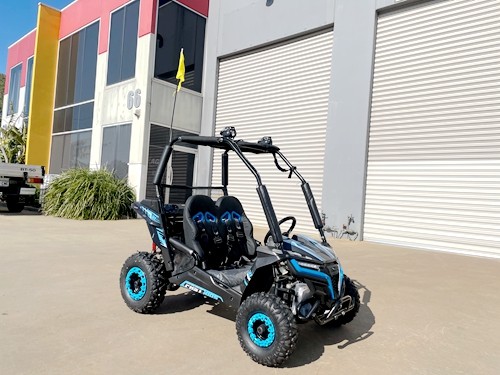

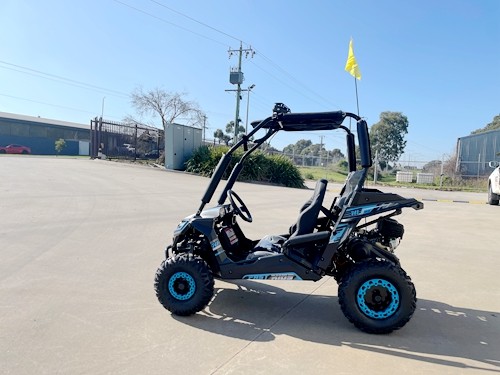

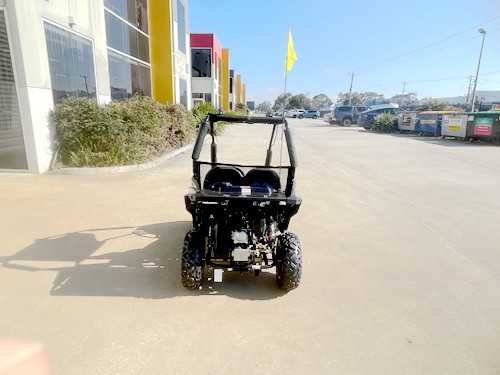

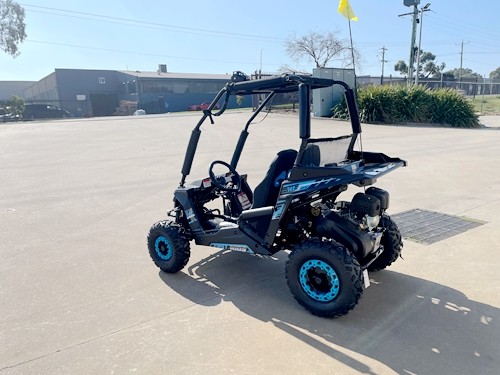

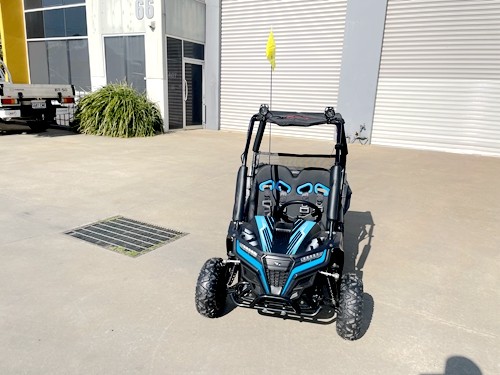

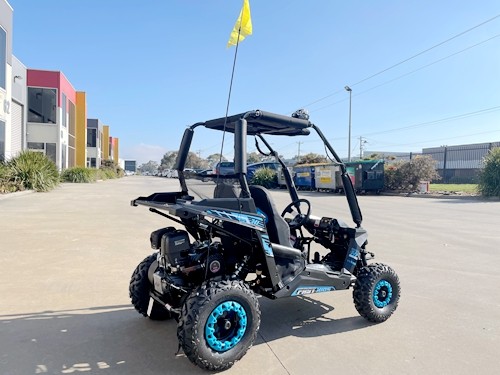

FORZA 1 K1 Dune Buggy 163CC 5.5HP Off Road UTV ATV 2 Seater 4 Wheel Go kart REV BLUE

• 163cc/5.5hp OHV engine

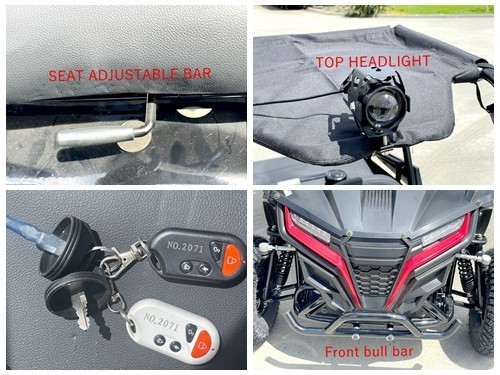

• Adjustable seat

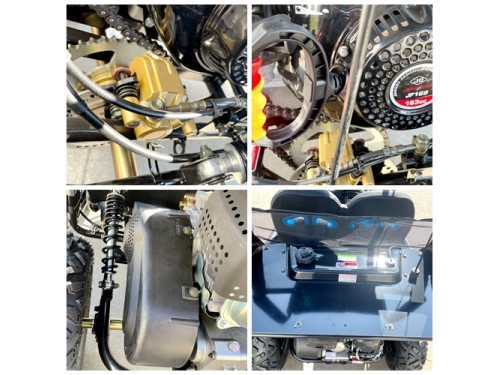

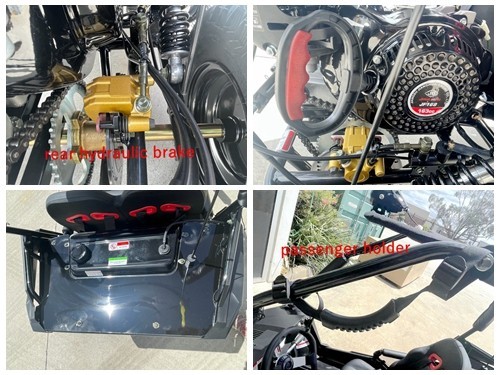

• Hydraulic rear disc brake
• Electric key start and pull start
• Auto with the reverse gear
• Led headlights+top headlight

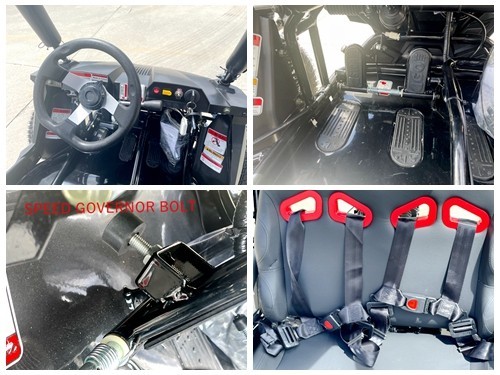

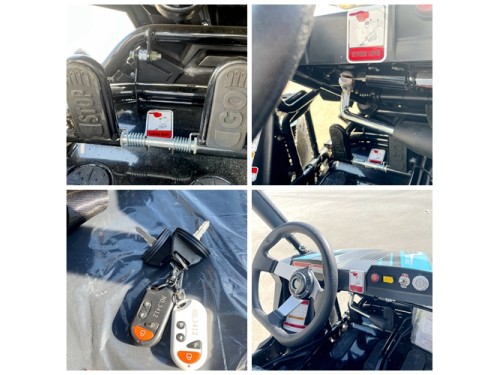

• Adjustable speed governor behind the pedal
• Adjustable seat
• Immobiliser (Remote start, Emergency Kill switch, Alarm)
• Horn

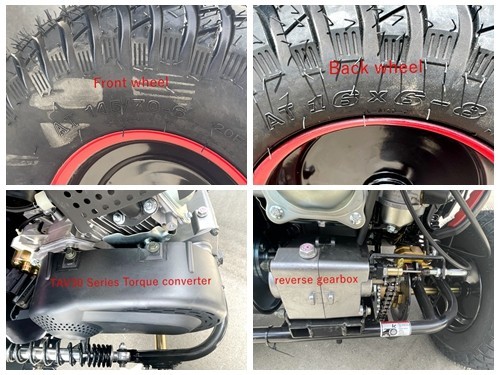

• TAV30 Series Torque converter
• Reverse gearbox

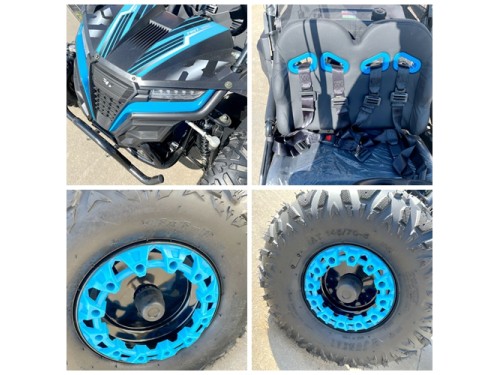

• 3 Points seat belts
• Front bull bar
• knobby wheel tires.

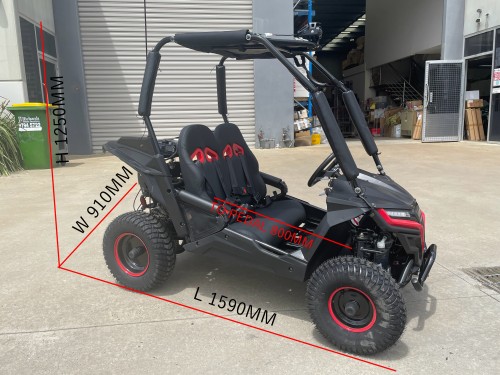

Buggy dimensions: 1590x910x1250mm LxWxH

Packing size: 1500mm(l) x 800mm(w) x 530mm(h)

Net/gross weight: 120kgs/160kgs

Max loading: 100kgs

Wheelbase 111omm

Pedal to seat back: 80mm(adjustable distance:10cm)

Min ground clearance: 90mm

Max speed: 45km/h

Climbing ability: 12 degree

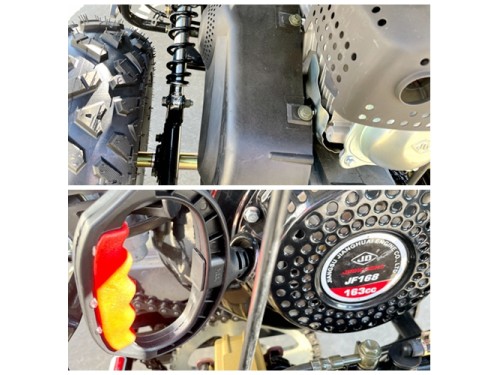

Engine model: JF168 4-stroke ,air-cool,single cylinder

Displacement: 163cc

Bore x Stroke: 68mm x 45mm

Fuel supply method: fuel switch/gravity

Carburettor: JF168N.9.1C

Power: 3.2kw/3600RPM , 5.5HP

Ignition mode: transistor contactless ignition

Start mode: Pull and electric start

Immobiliser (Remote start, Emergency Kill switch, Alarm)

Lubrication mode: splash

Spark plug model: F7TC/F7RTC/0.6-0.7MM

crankcase lubrication oil model: SAE 10W/40

Fuel tank capacity: 3.6L

Transmission mode: CVT

Gearbox: external reverse

Clutch: Auto

Battery model: YTX12-BS 12V10AH

Engine oil 0.6L

Front wheels: 145/70-6 @15psi

Rear wheels: 16x6-8 @15psi

Front suspension method: double A-arm independent suspension

Rear suspension: Spring over shock with 2.0"of travel

Driven mode: rear wheel driven

Shipping cost:

Please send me your postcode/suburb then we will quote a shipping rate asap. Most items will be sent to your local depot. Home delivery will cause an extra fee.

Assembly:

This buggy comes in a crate, assembly is requested. Please install wheels/mudguards/seats/top roll cage, etc.

Questions please email: [email removed by eBay]
